Description

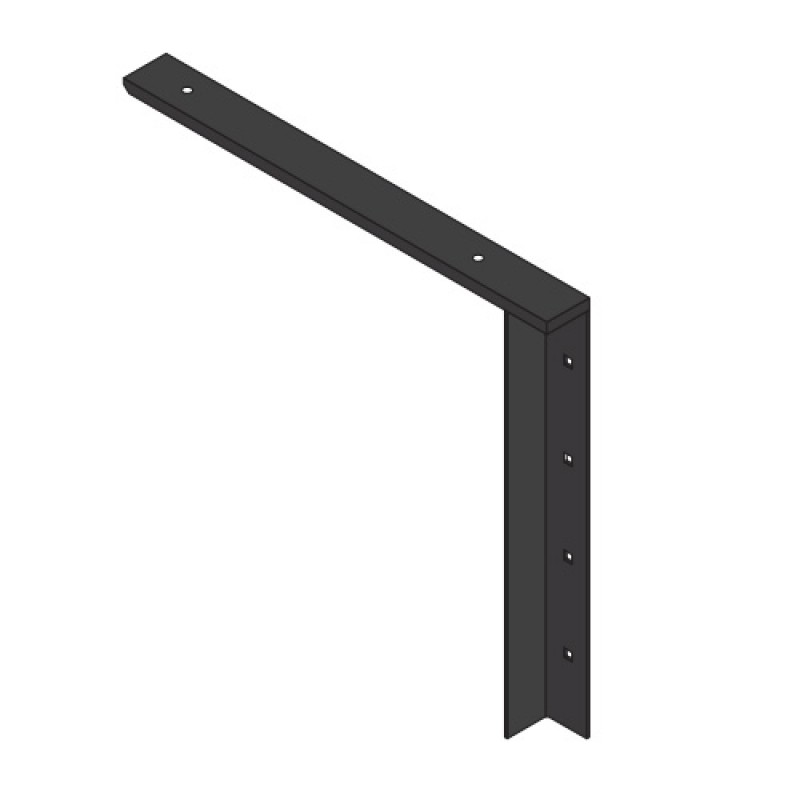

Looking for a bracket that is completely concealable? Look no further. The Concealed FLAT and Extended Concealed FLAT brackets provide superior strength and can be completely hidden in your countertops, cabinets, shelves or islands.
- CFLAT and ECFLAT brackets available in 2.0″ or 1.0″ versions
- Available with 9″, 12″, 18″ and 24″ (2.0″ only) support arms
- Available with upper extension (EC) and without upper extension (C)
- Upper extension (above the support arm) provides superior strength
- Load limit range of 1100 lbs. to 4900 lbs. per pair
- Half-inch horizontal support arm can be completely concealed
- Mounting hardware included
- 3/8″ x 16 x 3″ bolt assemblies for 2.0 brackets
- ¼” x 16 x 3″ bolt assemblies for 1.0 brackets
- All welds on reverse for easy, clean install
- All brackets available in black and white powder coat
| Bracket | Overhang Length | Load to Deformation (lbf) |
| CFLAT9 (1.0) | 9-15″ | 2500 / PR |
| CFLAT12 (1.0) | 12-18″ | 1800 / PR |
| CFLAT18 (1.0) | 18-24″ | 1100 / PR |
| CFLAT9 (2.0) | 9-15″ | 2550 / PR |
| CFLAT12 (2.0) | 12-18″ | 2000 / PR |
| CFLAT18 (2.0) | 18-24″ | 1470 / PR |
| CFLAT24 (2.0) | 24-30″ | 1150 / PR |
