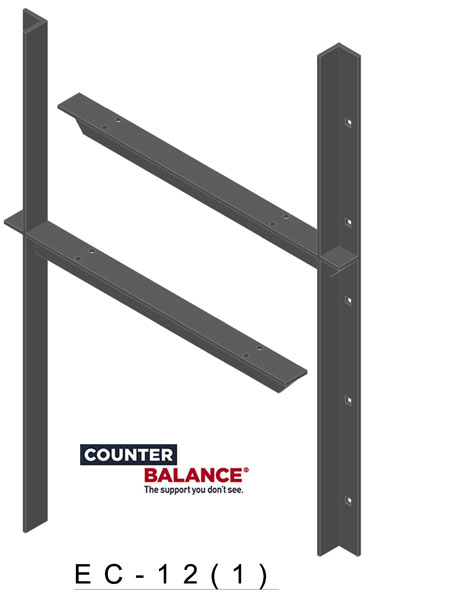

CounterBalance Extended Concealed Bracket-White-1″-12 in



Backordered - 10-15 day lead time

  • Expert Support

  • 50+ Years of Experience

  • Same Day Shipping*

*On in-stock items, placed by 2pm EST

Ask An Expert

Our engineers are ready to help!

Get In Touch Now


The CounterBalance® extended concealed bracket is a heavy-duty structural concealed countertop bracket designed for floating countertop surfaces. The extended concealed bracket is designed to attach to load-bearing studs and features a vertical extension above the support arm for extra strength. The extended concealed bracket can support an overhang extending 6˝ beyond the length of the bracket as per industry standard recommendations. These products are available in many useful sizes and come in a variety of colors to match your surface.

Is your drywall already installed? No worries, take a look at our hybrid bracket. It’s the perfect alternative for supporting your floating surfaces.

Looking for a stronger countertop support? The CounterBalance® concealed bracket (2″) is the next best alternative. Please just reference the load limit sheet in our product download area below.

  • Available in a 1” and 2” version in black, white, gray and almond
  • Available with 9″, 12″, 18″, 24″ and 30″ support arms
  • Hot rolled, 1/4” steel with powder-coated finish for strength and durability
  • Mounts to studs behind drywall
  • Load limit range of 400 lbs. to 7,960 lbs. per pair
  • Countertop can extend up to 6″ beyond the support
  • These countertop support brackets should be placed every 16″ to 20″
Bracket Overhang Length Load to Deformation (lbf)
EC9 9-15″ 7960 / PR
EC12 12-18″ 3100 / PR
EC18 18-24″ 2950 / PR
EC24 24-30″ 2320 / PR
EC30 30-36″ 1375 / PR
EC9 (1.0) 9-15″ 760 / PR
EC12 (1.0) 12-18″ 650 / PR
EC18 (1.0) 18-24″ 400 / PR


(0 Reviews)

Additional information

Weight 3 lbs
Dimensions 12 × 2 × 20 in



Must Ship Freight
