Description

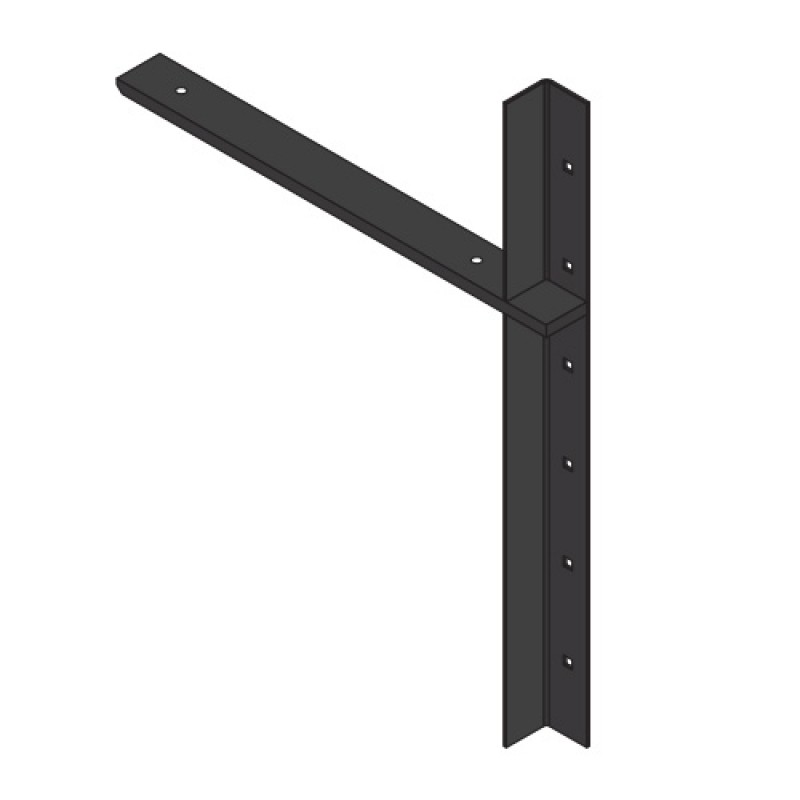

Looking for a bracket that is completely concealable? Look no further! The concealed flat bracket and extended concealed flat bracket provides superior strength and can be completely hidden in your countertops, cabinets, shelves, or islands.
- Upper extension (above the support arm) provides superior strength
- Load limit range of 1,400 lbs. to 4,900 lbs. per pair
- Mounting hardware included
- 3/8″ x 16 x 3″ bolt assemblies for 2.0 brackets
- ¼” x 16 x 3″ bolt assemblies for 1.0 brackets
- All welds on reverse for easy, clean install
- All brackets available in black and white powder coat
- Half Inch horizontal support arm can be completely concealed
| Bracket | Overhang Length | Load to Deformation (lbf) |
| ECFLAT9 (1.0) | 9-15″ | 3400 / PR |
| ECFLAT12 (1.0) | 12-18″ | 2100 / PR |
| ECFLAT18 (1.0) | 18-24″ | 1400 / PR |
| ECFLAT9 (2.0) | 9-15″ | 4900 / PR |
| ECFLAT12 (2.0) | 12-18″ | 3450 / PR |
| ECFLAT18 (2.0) | 18-24″ | 2400 / PR |
| ECFLAT24 (2.0) | 24-30″ | 1700 / PR |
