CounterBalance

CounterBalance Concealed Bracket-Almond-2″-18 in

SKU: CCH-CBCB-18AL

$62.99

Quantity:
  • Expert Support

  • 50+ Years of Experience

  • Same Day Shipping*

*On in-stock items, placed by 2pm EST

Ask An Expert

Our engineers are ready to help!

Get In Touch Now

Description

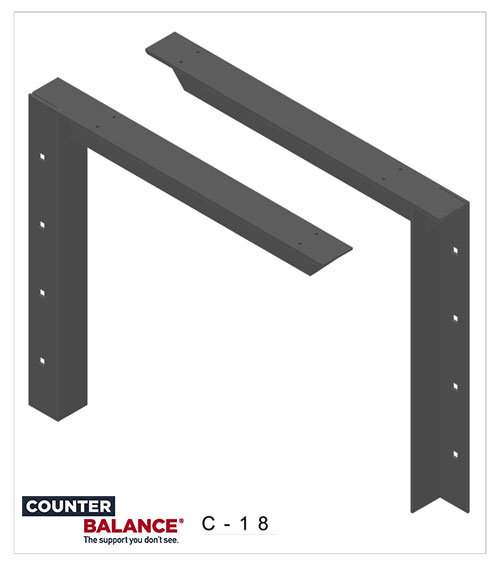

The CounterBalance® concealed brackets function as countertop brackets or island brackets that provide additional strength with the vertical arm extending above the horizontal arm while remaining completely concealed behind drywall to allow for a “floating” look. Designed to attached to load bearing studs, these hidden brackets can support an overhang extending 6″ beyond the length of the bracket as per industry-recommended standards. The load limit is 1,800 to 7,960 pounds and is sold in pairs with hardware included. These concealed brackets are even available in various sizes and colors; choose from the 1″ mini or 2″ thickness and a variety of colors.

  • Hot rolled, 1/8” steel with powder-coated finish for strength and durability
  • Available with 9″, 12″, 18″, 24″ and 30″ support arms
  • Load limit range of 1,800 lbs. to 7,960 lbs. per pair — countertop can extend up to 6″ beyond the support
  • Supports should be placed every 16″ to 20″
Bracket Overhang Length Load to Deformation (lbf)
EC9 9-15″ 7960 / PR
EC12 12-18″ 3100 / PR
EC18 18-24″ 2950 / PR
EC24 24-30″ 2320 / PR
EC30 30-36″ 1375 / PR
C9 9-15″ 4520 / PR
C12 12-18″ 2500 / PR
C18 18-24″ 2060 / PR
C24 24-30″ 1830 / PR
C30 30-36″ 1000 / PR
EC9 (1.0) 9-15″ 760 / PR
EC12 (1.0) 12-18″ 650 / PR
EC18 (1.0) 18-24″ 400 / PR
C9 (1.0) 9-15″ 700 / PR
C12 (1.0) 12-18″ 635 / PR
C18 (1.0) 18-24″ 350 / PR





0/5


(0 Reviews)

Additional information

Weight 2 lbs
Dimensions 18 × 2 × 18 in
Manufacturer

Length

Width

Must Ship Freight

Color Family

Color

Almond

Country Of Manufacture

Origin
