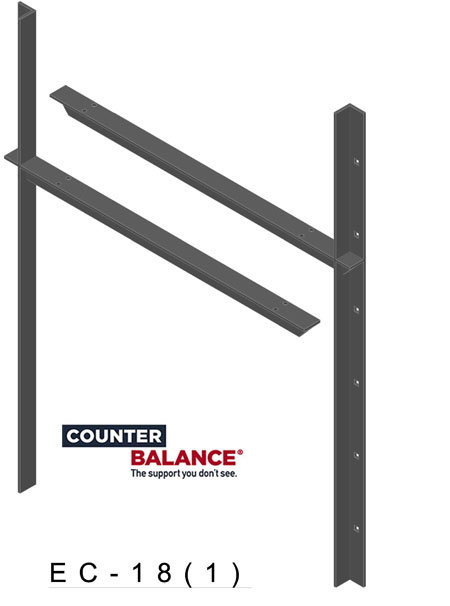

CounterBalance Extended Concealed Bracket-White-1″-18 in

Description

The CounterBalance® extended concealed bracket is a heavy-duty structural concealed countertop bracket designed for floating countertop surfaces. The extended concealed bracket is designed to attach to load-bearing studs and features a vertical extension above the support arm for extra strength. The extended concealed bracket can support an overhang extending 6˝ beyond the length of the bracket as per industry standard recommendations. These products are available in many useful sizes and come in a variety of colors to match your surface.

Is your drywall already installed? No worries, take a look at our hybrid bracket. It’s the perfect alternative for supporting your floating surfaces.

Looking for a stronger countertop support? The CounterBalance® concealed bracket (2″) is the next best alternative. Please just reference the load limit sheet in our product download area below.

• Available in a 1” and 2” version in black, white, gray and almond
• Available with 9″, 12″, 18″, 24″ and 30″ support arms
• Hot rolled, 1/4” steel with powder-coated finish for strength and durability
• Mounts to studs behind drywall
• Load limit range of 400 lbs. to 7,960 lbs. per pair
• Countertop can extend up to 6″ beyond the support
• These countertop support brackets should be placed every 16″ to 20″
