Description
The CounterBalance® Workstation Brackets provide cost-efficient, secure shelving supports for countertops, workbenches, garage storage, ADA stations, computer stations and other “floating” work surfaces. This workstation bracket is available in many useful sizes and comes in a variety of colors to match your surface. Our workstation bracket is designed to attach to load-bearing studs and can support an overhang extending 6″ beyond the length of the bracket as per industry standard recommendations.
- Available in 12 sizes
- 1 1/2″ forms with multiple 1/4″ mounting holes per side (mounting hardware not included)
- Made of 1/8′ steel
- The 10 larger sizes have a 3″ x 3″ 45-degree notch that allows for wall cleat and wire run clearance
- Very strong: load limit range of 1420 lbs. to 2920 lbs. per pair
- Reversible design makes workstation bracket versatile & easy to use

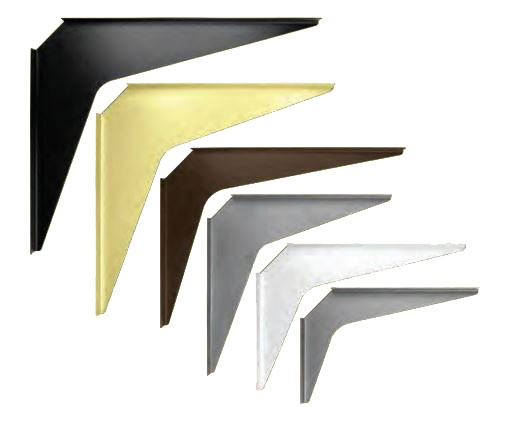

- Available in standard textured powder coat finishes including black, white, gray, brown (except US made) or almond
- All sizes available in Copper, Gold and Silver Powder Coat Veining Finish
- Available in pre-primed finish for your paint
- Available either “imported” or “made in the USA”
- 3 sizes of Stainless Steel available “imported” or “made in the USA”
- 4 sizes available in 1/4′ Aluminum
| Bracket | Overhang Length (Reversible & Standard) |
Load to Deformation (lbf) |
| 5 x 8″ | 5-11″ 8-14″ |
1520/pr |
| 8 x 12″ | 8-14″ 12-18″ |
2920/pr |
| 12 x 12″ | 12-18″ | 1700/pr |
| 12 x 18″ | 12-18″ 18-24″ |
2040/pr |
| 15 x 15″ | 15-21″ | 1600/pr |
| 15 x 21″ | 15-21″ 21-27″ |
1780/pr |
| 18″ x 18″ | 18-24″ | 1750/pr |
| 18 x 24″ | 18-24″ 24-30″ |
2220/pr |
| 21 x 21″ | 21-27″ | 1905/pr |
| 24 x 24″ | 24-30″ | 2560/pr |
| 24 x 29″ | 24-30″ 29-35″ |
2100/pr |
| 29 x 35″ | 29-35″ 35-41″ |
1550/pr |
