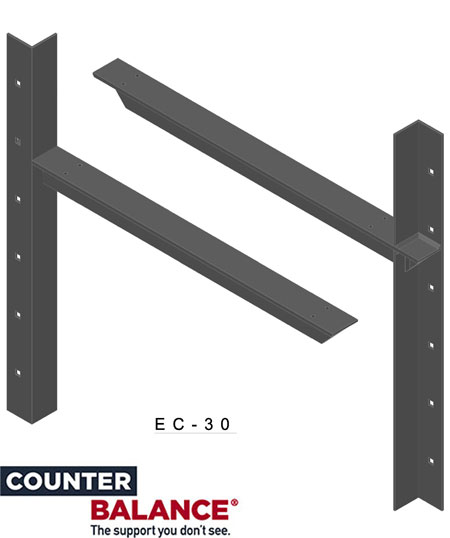

The CounterBalance® extended concealed bracket is a heavy-duty structural concealed countertop bracket designed for floating countertop surfaces. The extended concealed bracket is designed to attach to load-bearing studs and features a vertical extension above the support arm for extra strength. The extended concealed bracket can support an overhang extending 6″ beyond the length of the bracket as per industry standard recommendations. These products are available in many useful sizes and come in a variety of colors to match your surface.

Is your drywall already installed? No worries, take a look at our hybrid bracket. It’s the perfect alternative for supporting your floating surfaces.

Looking for a stronger countertop support? The CounterBalance® concealed bracket (2″) is the next best alternative. Please just reference the load limit sheet in our product download area below.

  • Available in a 1” and 2” version in black, white, gray and almond
  • Available with 9″, 12″, 18″, 24″ and 30″ support arms
  • Hot rolled, 1/4” steel with powder-coated finish for strength and durability
  • Mounts to studs behind drywall
  • Load limit range of 400 lbs. to 7,960 lbs. per pair
  • Countertop can extend up to 6″ beyond the support
  • These countertop support brackets should be placed every 16″ to 20″
Bracket Overhang Length Load to Deformation (lbf)
EC9 9-15″ 7960 / PR
EC12 12-18″ 3100 / PR
EC18 18-24″ 2950 / PR
EC24 24-30″ 2320 / PR
EC30 30-36″ 1375 / PR
EC9 (1.0) 9-15″ 760 / PR
EC12 (1.0) 12-18″ 650 / PR
EC18 (1.0) 18-24″ 400 / PR


(0 Reviews)

Additional information

Weight 3 lbs
Dimensions 30 × 2 × 38 in
